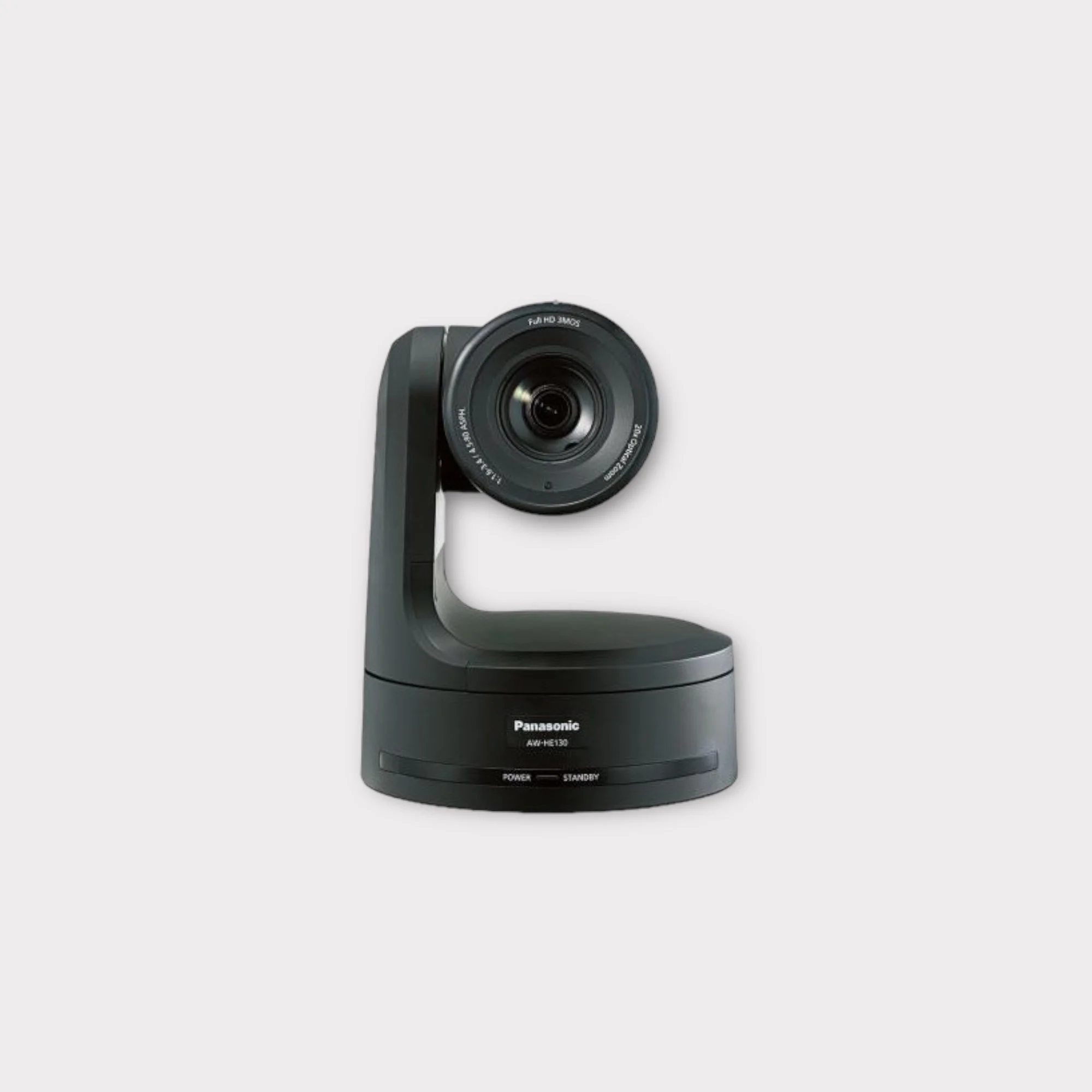

Panasonic AW-HE130

1/2.86” 3MOS

Up to HD

PoE+

Introducing a new PTZ camera capable Production Quality Full HD video output up to 1080/60p via IP transmission, in addition to 3G-SDI and HDMI. Equipped with three newly developed 1/2.86 MOS sensors for high sensitivity, a superior S/N ratio and high resolution. The AW-HE130W/K also supports PoE+*, so the camera only needs one LAN cable for its power supply, control and video output. Presenting the new standard in versatile, high-quality remote production with 3G-SDI, IP-Streaming, and POE+.

Key features

  • Newly developed 1/2.86-type three MOS sensors

  • 1.4x Extender Zoom

  • Optical Image Stabilizer, Night Mode & Fan-Less Design

  • PoE+ for Power, Streaming & Control via a Single Cable

  • HD-IP Streaming


CONTROLLER

LENS MOUNT

FOCAL LENGTH

IMAGE STABILIZATION

SHUTTER

NIGHTVISION

INTERNAL ND

WEIGHT

AUDIO INPUTS

PoE SUPPORT

EXT. RECORDING MODES

AW-RP120G

AW‑RP50

AK-HRP200G

Fixed Lens

4.5 to 90mm (35mm Eq: 32.13 to 642.5 mm)

Optical Image Stabilizer

Electronic Shutter

Yes

1/8, 1/64, & IR Thru ND Filters

6.83 lbs

ø3.5 mm Stereo Mini Jack Input

PoE+ (IEEE802.3at standard)

3G-SDI, IP-Streaming
