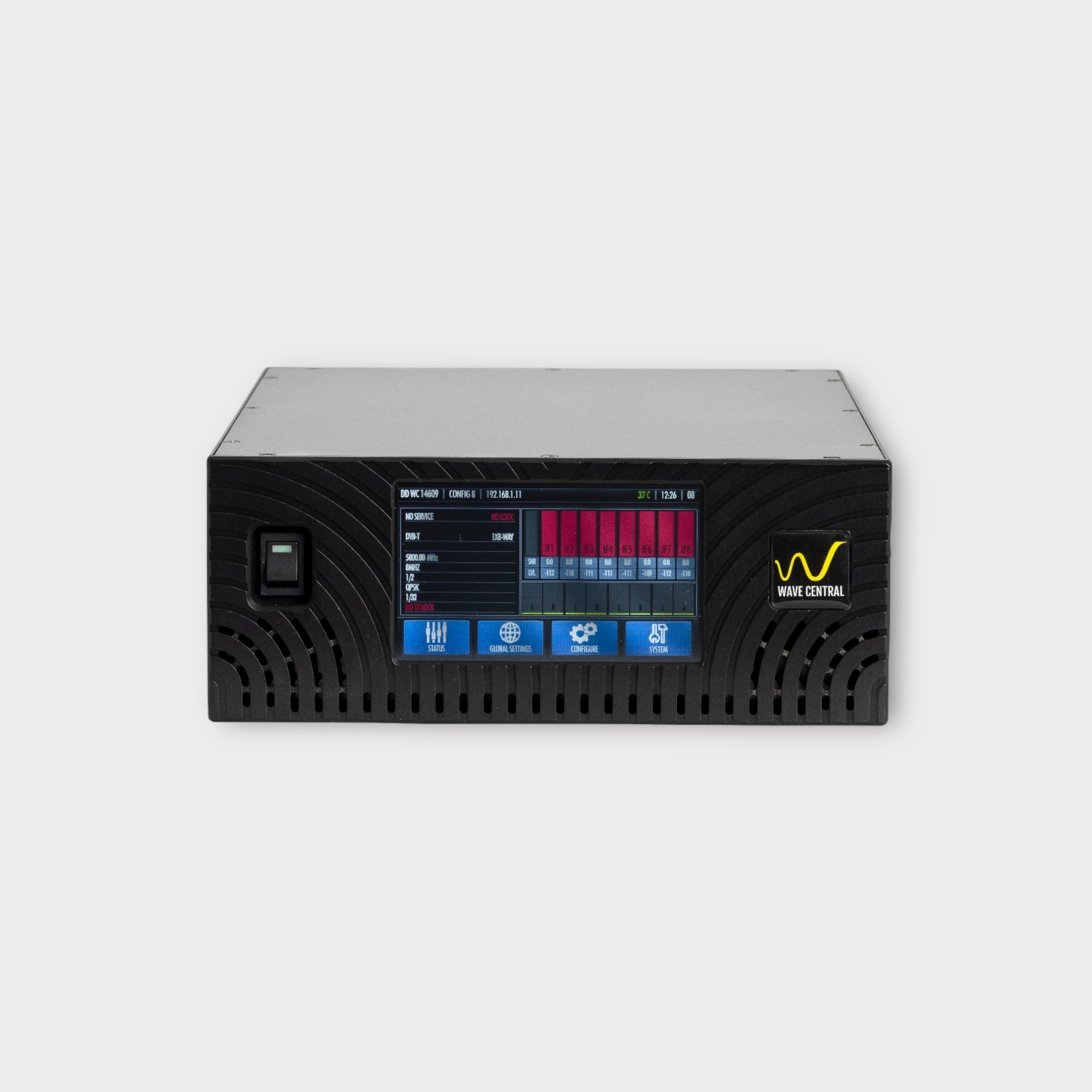

WaveCentral AXRX3 8-Way COFDM Rack Dual Rx

WaveCentral AXRX3 8-Way COFDM Rack DUAL Rx

Up to 1080P

HD-SDI / HDMI

5.8 GHZ

WaveCentral AXRX3 8-Way COFDM Rack DUAL Channel Receiver

The excellent RF performance is complemented by an extremely flexible decoding platform, with low-delay SD and HD MPEG2 and h.264 decoding ensuring compatibility with all Wave Centrals’ and most third-party encoders.

A second decoder is installed in this unit, allowing two SD or HD signals to be decoded. Multiple output formats are offered with SDI outputs in SD and HD-SDI, including embedded audio. ASI transport stream in/out is available, and HDMI outputs are provided for use with domestic TVs. A comprehensive graphical on-screen display (OSD) is available for monitoring and diagnostics, which can be enabled or disabled separately on the two video outputs.

2 Channel Receiver
Configuration up to 8-way diversity
h.264
Resolution up to HD
UHF with External Down-converter

undefined
UHF INPUT	70 to 850 MHz downconverted
- MODULATION -
DVB-T BANDWIDTH	6, 7, or 8 MHz
DVB-T GUARD INTERVAL	1/4, 1/8, 1/16, and 1/32
DVB-T FEC	1/2, 2/3, 3/4, 5/6, and 7/8
DVB-T CONSTELLATIONS	QPSK, 16QAM, 64QAM

- VIDEO -
INPUT	(1) HD-SDI/ASI, (1) HDMI, (1) CVBS
RESOLUTION	(SD) 720X480i, 59.94 - 720X576i, 50 Hz
	(HD) 720p50, 720p59, 720p60, 1080i50, 1080i59, 1080i60, 1080p23, 1080p24, 1080p25, 1080p29, 1080p30, 1080p50, 1080p59, 1080p60, 1080psf23, 1080psf24, 1080psf25, 1080psf29, 1080psf30

IP STREAMING	RJ-45 control available

- CONNECTORS -
INPUT	BNC IF
ASI INPUT / OUTPUT	BNC Female
EXTERNAL GENLOCK INPUT	BNC Female
AUDIO OUTPUT	Analog (2ch) line level (XLR male)

- POWER -
POWER INPUT	9 - 17VDC
POWER CONSUMPTION	27W (2-way), 35W (4-way)
	43W (6-way) 53W(8-way)

- CONFIGURATIONS -
IF ANTENNA INPUTS	2, 4, 6, and 8-way
ADDITIONAL OUTPUTS	HD-SDI/ASI/HDMI
