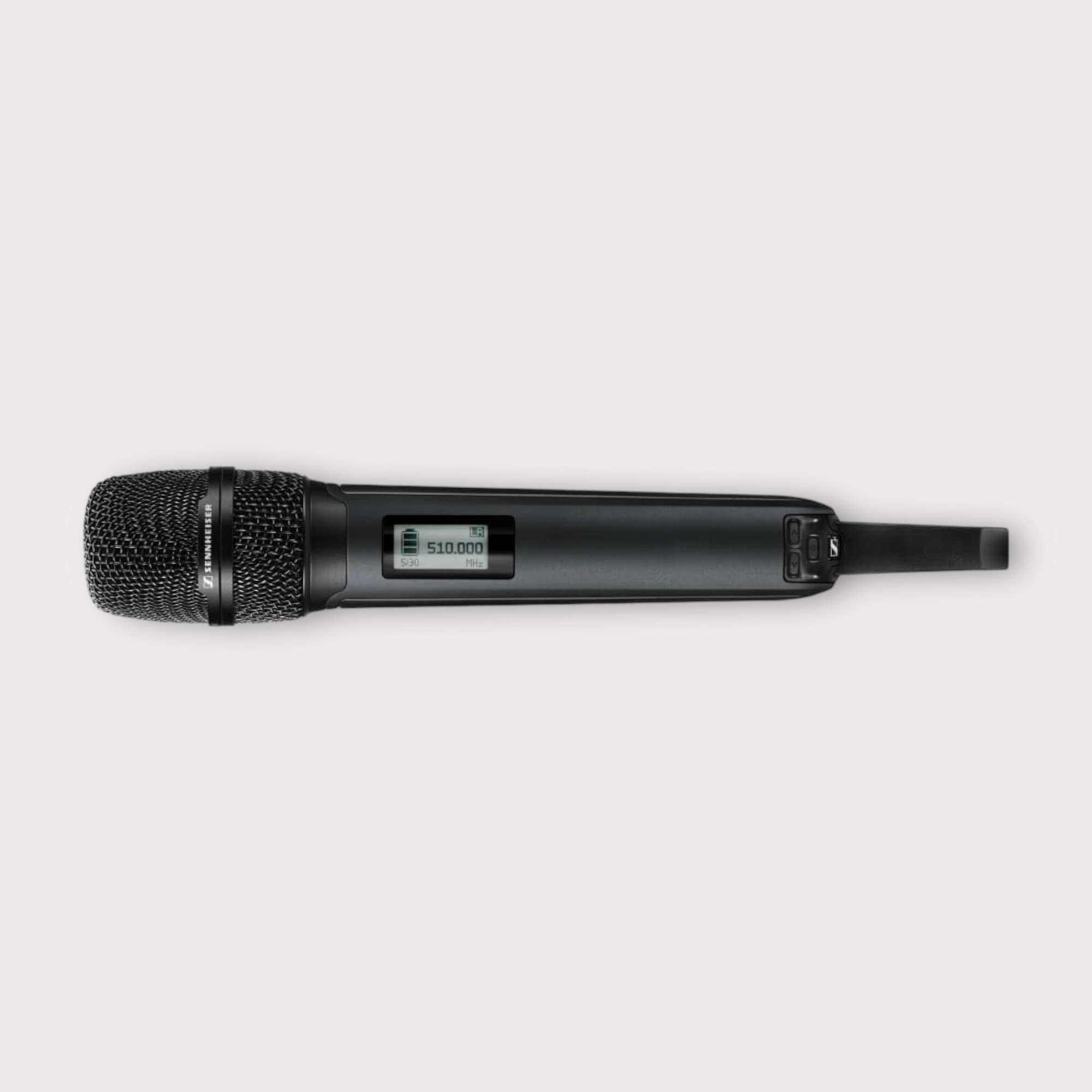

Sennheiser SKM6000 Tx
Sennheiser SKM 6000 Digital Handheld Wireless Microphone Transmitter
More channels, better transmission performance: intermodulation-free handheld transmitter with maximum spectral efficiency and huge signal reliability. Via the Sennheiser standard capsule interface, compatible with Sennheiser and Neumann capsules. Up to 5.5 hours of operation with lithium-ion battery pack, optionally battery set.
The handheld transmitter SKM 6000 is intermodulation-free, which allows operation in an equidistant frequency grid. The transmission concept thereby permits maximum spectral efficiency even in the toughest frequency ranges. In short: more channels, maximum transmission performance at all times and hence outstanding signal stability. The legendary Sennheiser Digital Audio Codec (SeDAC) guarantees clear, artifact-free sound and optimum dynamics. In Link Density mode up to 5 links per 1 MHz bandwidth are possible. The SKM 6000 is compatible with Sennheiser and Neumann capsule heads and hence perfectly prepared for any stage, voice and requirement (evolution wireless, 2000, Digital 9000, Neumann KK 204 and KK 205). The special magnesium housing offers the perfect balance between low weight and live-compatible robustness. The lithium-ion battery pack BA 60 ensures up to 5.5 hours of operation; there is also the option of operation with batteries using the battery set B 60. The transmitter is also compatible with the EK 6042 and the EM 9046 in Long Range mode.
For Digital 6000 Series Receivers
Interchangeable Mic Capsule Design
88 MHz Tuning Bandwidth
5.5 Hours on BA 60 Rechargeable Battery
AES 256 & Digital 9000 Encryption
Manual & Remote Gain Adjustment
25mW RF Output Power
Backlit LCD
undefined | Description |
---|---|
WIRELESS TECHNOLOGY | Digital UHF |
MAX OPERATING RANGE | 300' / 91.4 m |
RF FREQ BAND | 470 to 558 MHz |
ENCRYPTION | AES 256 / Sennheiser Digital 9000 |
BUILT IN RECORDER | No |
TIMECODE SUPPORT | No |
RF OUTPUT POWER | 25 mW |
ANTENNA | Internal |
INPUT LEVEL | Microphone |
AUDIO I/O | No |
BIAS/PLUG-IN & PHANTOM POWER | Bias/Plug-In Power is Unspecified by Manufacturer No Phantom Support |
USB | |
GAIN RANGE | 0 to +62 dB (3 dB Steps) |
AUTO-LEVEL/GAIN | No |
FREQ RESPONSE | 30 Hz to 20 kHz ±3 dB (Dependent on Mic) |
SYNC METHOD | IR |
TRANSMITTER BATTERY TYPE | 1x Sennheiser Battery Pack (Not Included) or 2x AA (Not Included) |
TRANSMITTER BATTERY LIFE | 5.5 Hours (Sennheiser Battery Pack) |
HOUSING | Magnesium |
WEIGHT | 12.3 oz / 350 g (with Batteries) |
